EMI Suppression Filters (EMC and Noise Suppression) Noise Suppression for USB4 (3)

Contents

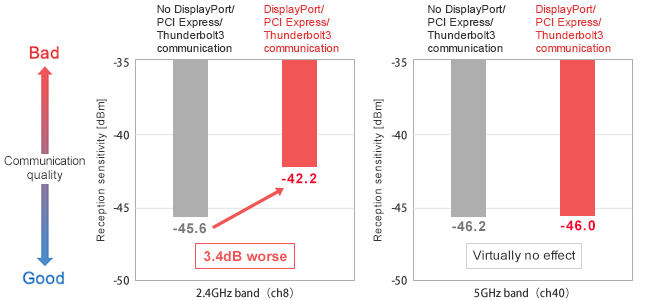

We examined the degree of impact on the Wi-Fi reception sensitivity by USB4 operation.
When various types of data communication were performed, the Wi-Fi (2.4 GHz band) reception sensitivity level dropped by about 3 dB. This was likely due to interference with the antenna by noise generated during communication.
In this DUT, a drop in reception sensitivity in the 5 GHz band was not found.

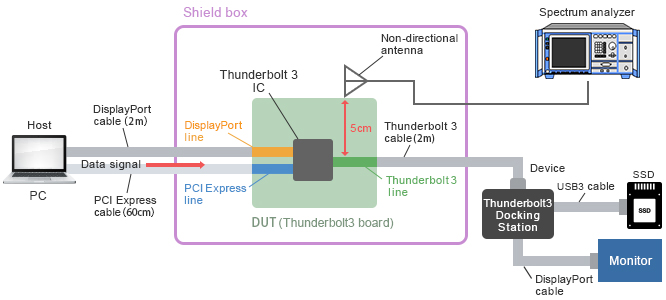

Next, we verified the level of noise entering the nearby antenna.
This assessment also used a distance of about 5 cm between the differential signal line and antenna.

We found that broadband noise occurred due to DisplayPort, PCI Express, and Thunderbolt 3 communication in the 2 to 4.5 GHz range, and this noise entered the wireless antenna.
In particular, noise occurred in the Wi-Fi communication band (2.4 GHz) and sub-6 communication band (3.3 GHz), and this noise needs to be suppressed in order to stabilize communication.

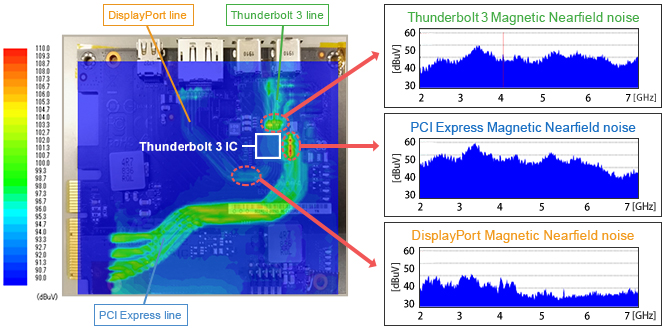

To identify the locations where noise occurred, the board was measured using an EMC tester capable of mapping the magnetic near field.
By performing various types of communication, broadband noise was propagated on the Thunderbolt 3 TX signal line, PCI Express Gen3 TX signal line, and DisplayPort signal line on the add-in card board.
It is thought that this broadband noise radiates in the space from the signal line and enters the wireless antenna.
Consequently, this results in drops in Wi-Fi reception sensitivity and sub-6 reception sensitivity.
This issue is also expected to occur in USB4, which has virtually the same electrical specifications as Thunderbolt 3.

From previous assessments, we found that broadband noise radiating from the PCI Express, DisplayPort, and Thunderbolt 3 signal lines during Thunderbolt 3 communication resulted in reduced sensitivity in wireless communication.

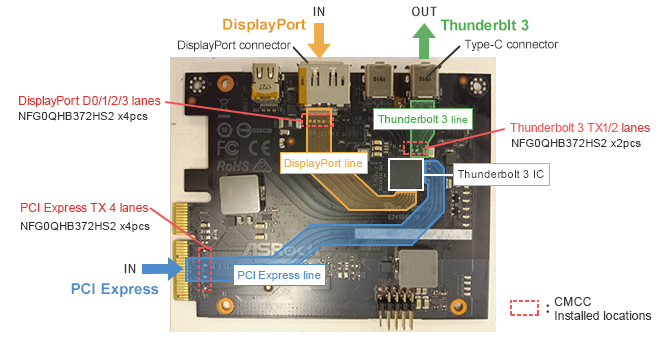

In response, CMCCs (NFG0QHB372) were installed on the signal lines, which were the conduction paths of the noise, for suppressing noise radiating from the wires.

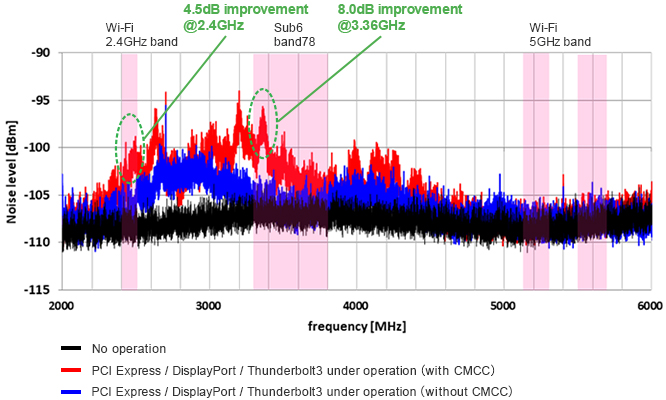

Installing CMCCs (NFG0QHB372) on the signal lines resulted in an improvement of 3.0 dB in Wi-Fi (2.4 GHz) reception sensitivity during PCI Express, DisplayPort, and Thunderbolt 3 communication compared to usage without CMCCs.

The noise entering the antenna was reduced by up to 8 dB.
The frequency of the entered noise must be used to select a component with specifications capable of suppressing noise in the 2.4 GHz to 5 GHz range.
