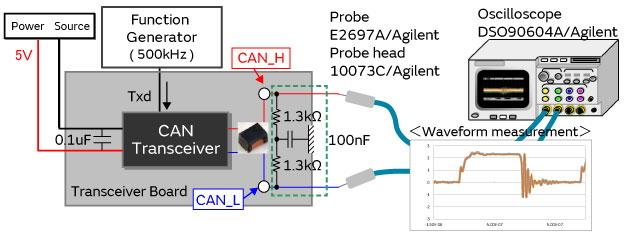

After passing through the filter, the voltages of the CAN_H and CAN_L lines were measured using the probes.
Differential voltage Vd was measured from the values thus obtained.
(Vd = VCAN_H – VCAN_L)
＜Evaluation conditions＞
- DUT
- CAN transceiver（previously made by company A）
- Evaluation items
- Common mode choke coils
(DLW43SH510XK2, DLW43SH101XK2; DLW32SH510VK2, DLW32SH101VK2)
