    EMI Suppression Filters (EMC and Noise Suppression)Examples of measures to suppress noise in USB 3.0 CISPR25 Class 5 signal lines

    Details of noise suppression measures taken in USB 3.0 mode

    In the USB 3.0 SuperSpeed mode, separate signal lines are used for TX and RX, unlike in the 2.0 mode.

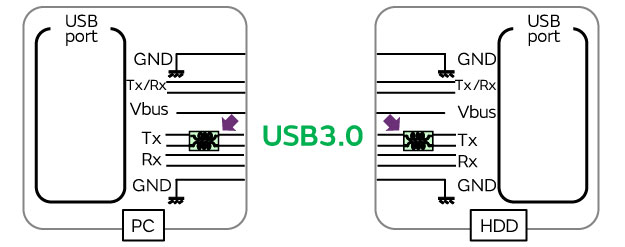

    Here, a common mode choke coil is inserted into the TX signal line.

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

    Common mode choke coil in TX signal line
    DLM11SN900HZ2
    or
    DLW21SZ900HQ2
    inserted

    Click here Open in New Window for details of the measurement conditions.

    Noise measurement results (for measures to suppress noise in USB 3.0 signal lines)

    DLM11SN900HZ2 used

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

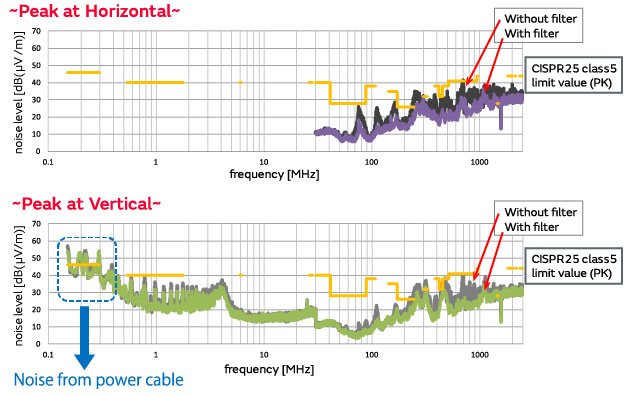

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehiclesBy adding a common mode choke coil (DLM11SN900HZ2), the noise was successfully reduced.

    DLW21SZ900HQ2 used

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

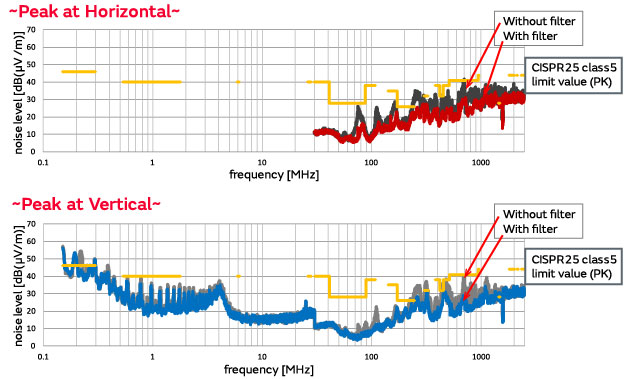

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehiclesBy adding a common mode choke coil (DLW21SZ900HQ2), the noise was successfully reduced.

    Verification of SI compatibility when filters are inserted

    USB3.0 Non-Transition Eye Diagram

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      short

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      DLM11SN900HZ2

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      DLW21SZ900HQ2

    USB3.0 Transition Eye Diagram

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      short

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      DLM11SN900HZ2

    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

      DLW21SZ900HQ2

    Return to TOP Examples of action taken to comply with the CISPR25 noise standard in devices installed in vehicles
