    EMI Suppression Filters(EMC and Noise Suppression)

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

    EMI Suppression Filters (EMC and Noise Suppression)Examples of measures to suppress noise in USB 3.0 mode CISPR25 Class 5 power lines

    Details of noise suppression measures taken in USB 3.0 mode

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles

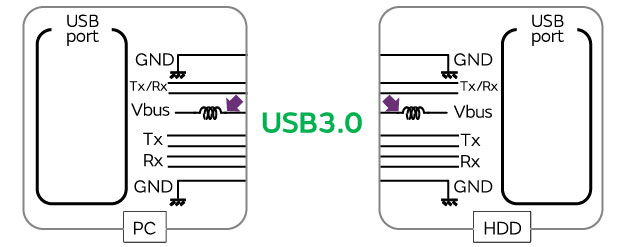

    BLM31PG601SH1 chip ferrite beads inserted into power (Vbus) line

    Click here Open in New Window for details of the measurement conditions.

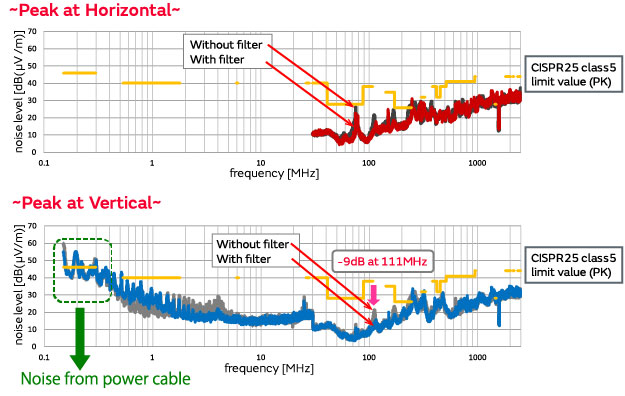

    Noise measurement results (for measures to suppress noise in USB 3.0 power lines)

    BLM31PG601SH1 used

    Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehicles
    • Examples of actions taken to comply with the CISPR25 standard governing radio emissions (noise emitted) from devices mounted in vehiclesBy adding chip ferrite beads (BLM31PG601SH1),
      the noise was successfully reduced (approx. 9 dB reduction at a vertically polarized wave frequency of 111 MHz).
    Return to TOP Examples of action taken to comply with the CISPR25 noise standard in devices installed in vehicles

    <Measures to suppress noise in power lines>
